What are the ways to clean the circuit board?
Circuit boards are essential components in nearly every electronic device, from computers to smartphones to home appliances. They contain complex circuits, chips and connectors that allow the device to function properly. Over time, circuit boards can accumulate dust, dirt, and other contaminants that can affect their performance. Therefore, it is critical to know how to clean circuit boards safely and effectively. In this article, we'll discuss some ways to clean circuit boards.
The first and most straightforward way to clean a circuit board is with compressed air. This method is effective in removing dust, hair, and other small particles that accumulate on the board. Cans of compressed air are readily available at electronics stores, and they come with a straw to point them where you want them. Always turn off and unplug the unit before using compressed air to avoid any electrical accidents. Stand the can upright and give a short blast of compressed air at a distance of about 6 inches. This method is great for cleaning keyboards, printers, and other devices that don't have any visible dirt or grime.

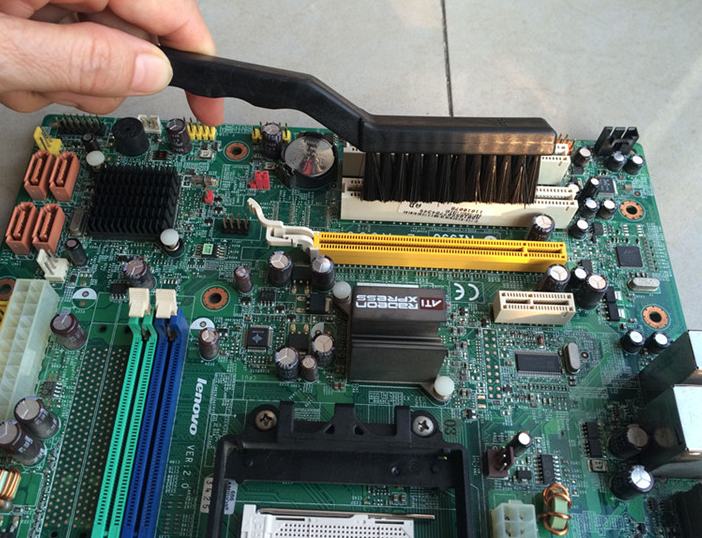

Another way to clean circuit boards is to use a soft-bristled brush or toothbrush. This method can be used to remove stubborn dirt or grime that cannot be removed with compressed air. First, remove the circuit board from the device and place it on a flat surface. Gently scrub the surface to remove any debris or dirt. Be careful not to use too much force as this may damage the board. Isopropyl alcohol is recommended for cleaning if there is any residue.
Isopropyl alcohol is one of the most common solvents used to clean circuit boards. It is an effective cleaner that dissolves grease, oil and grime. However, it is crucial to use it correctly and avoid overdoing it. Before use, make sure the device is turned off and disconnected from the power source. Dip a soft-bristled brush into the isopropyl alcohol and gently scrub the surface of the circuit board in circular motions. Make sure not to saturate the circuit board with alcohol. Allow the board to dry thoroughly before reassembling the device.
For more challenging cleaning tasks, dirt and debris can be removed from circuit boards using ultrasonic cleaning, which involves using high-frequency sound waves to create tiny air bubbles in a cleaning fluid. These bubbles then implode, removing any dirt or grime.
