Ucreate Printing Multilayer PCB Factory China

Layer:

1-32 Layer

Material:

Fr-4

PCB Thickness:

1.2mm

Cu Thickness:

1.0 OZ

Min Line W/S:

0.075/0.1mm

Surface Finish:

Immersion gold

Certificate:

UL/ISO/TS16949/RoHS/IATF

Application:

Consumer Electronics

If you have PCB/PCBA/Components/OEM/ODM needs, please contact us to get a free quote.
We will reply within 2 hours!
Inquiry

Product Parameters


Item

Specifica

Layers

1~32

Board thickness

0.1mm-7.0mm

Material

FR-4CEM-1/CEM-3PIHigh TgRogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSPHASLImm Gold/Nickel/Ag Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH±0.05 NPTH±0.025

Certificate

ULISO 9001ISO14001IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.

                   (Multilayer PCB Details Vedio)


General Introduction of Multilayer PCB


As the name suggests, a multi-layer circuit board can only be called a multi-layer circuit board with more than two layers, such as four layers, six layers, eight layers, and so on. Of course, some designs are three-layer or five-layer circuit, also called multi-layer PCB circuit board.

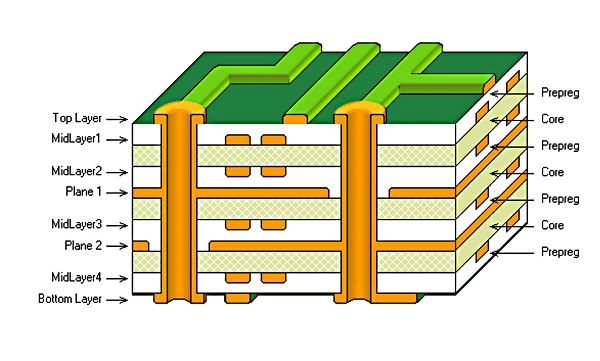

Conductive wiring diagram larger than the two-layer board. The insulating substrate is separated between the layers. After each layer of the circuit is printed, each layer of the circuit is overlapped by pressing. After drilling, the electrical connection between them is usually achieved through plated through holes on the cross section of the circuit board.

multilayer PCB.jpg

multi-layer PCB.png
