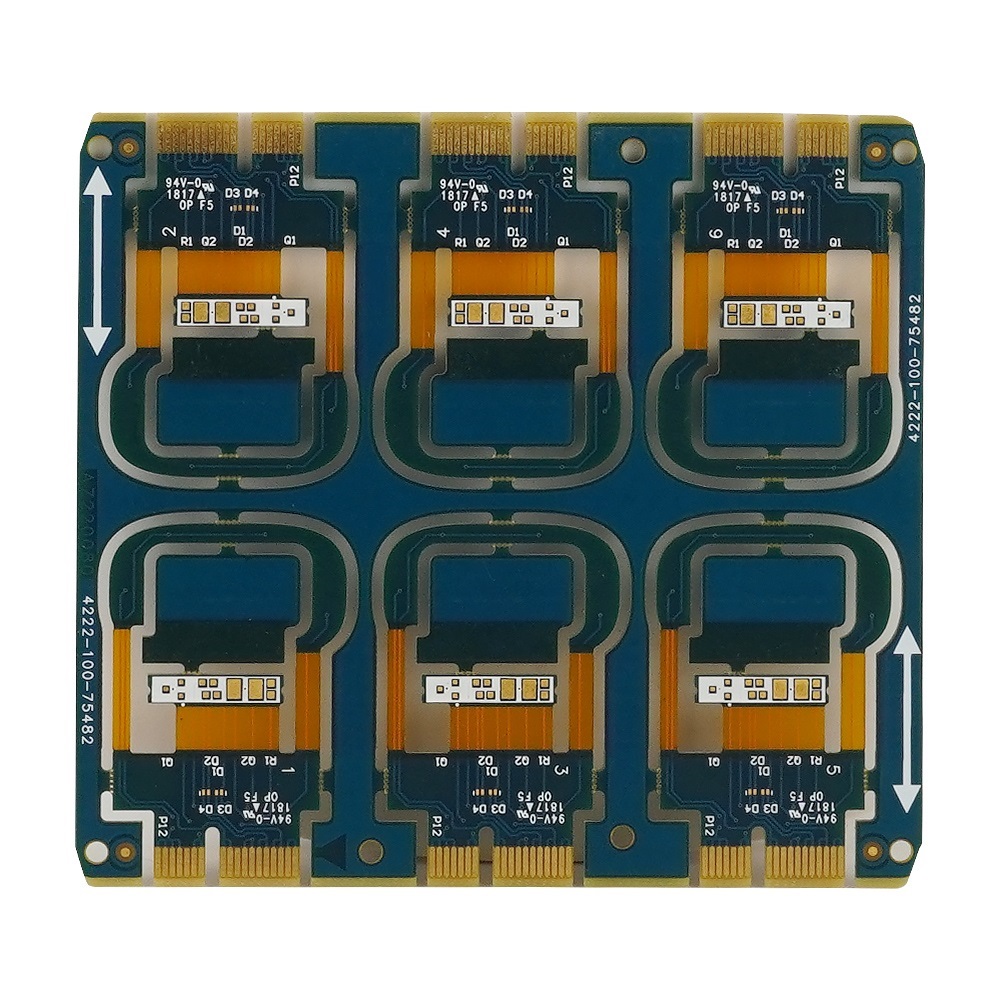

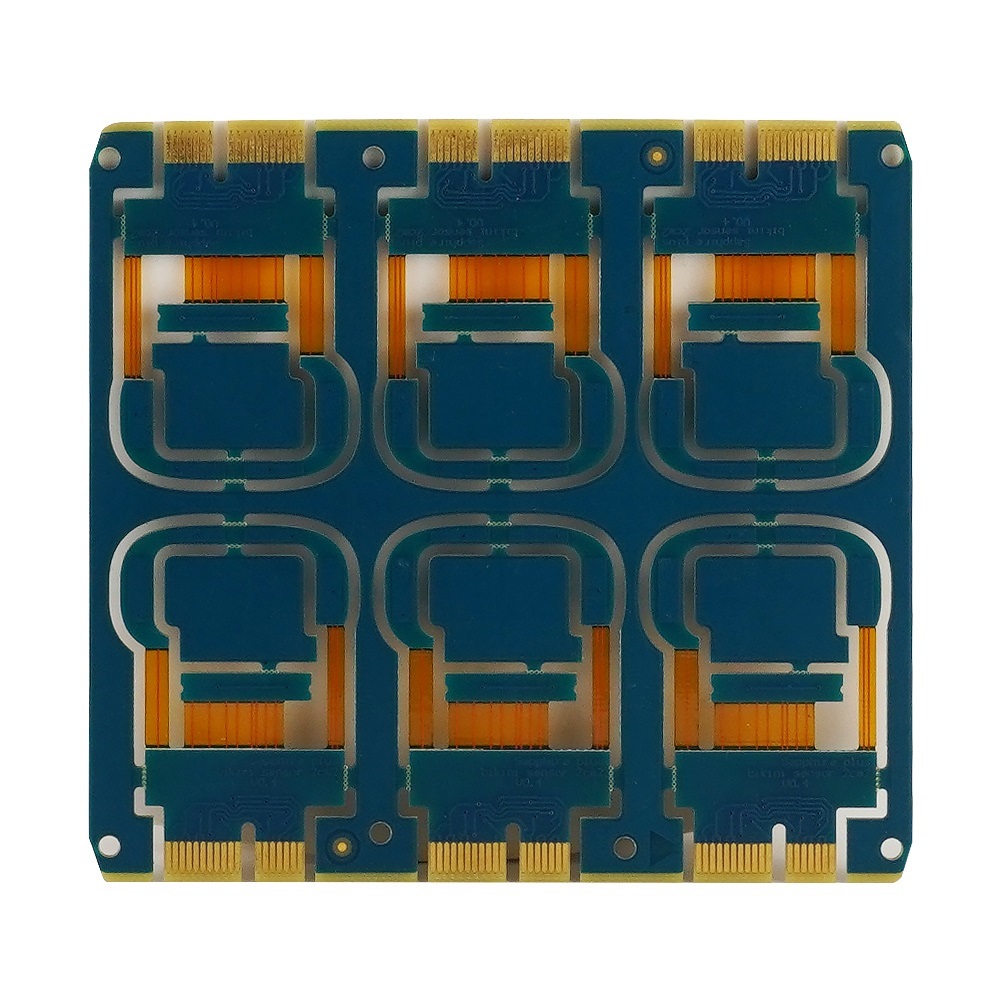

Good Quality Multilayer Fr-4/ Rigid-Flex PCB

Layer:

10 Layer

Material:

PI+FR-4

PCB Thickness:

1.6+0.2mm

Cu Thickness:

1.0 OZ

Min Line W/S:

0.075/0.1mm

Surface Finish:

Immersion Gold

Certificate:

UL/ISO/TS16949/RoHS/IATF

Application:

Security Electronics

If you have PCB/PCBA/Components/OEM/ODM needs, please contact us to get a free quote.
We will reply within 2 hours!
Inquiry

Product Parameters


Item

Speci.

Layers

1~32

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.



Flexible-Rigid PCB board

The flexible circuit board and the rigid circuit board are combined together according to the relevant process requirements after the process of pressing and forming, to form a circuit board with FPC characteristics and PCB characteristics.

FPC is a highly reliable and flexible printed circuit made of polyester film or polyimide as a substrate. By embedding a circuit design on a flexible thin plastic sheet, it can be narrow And a large number of precision components are stacked in a limited space to form a flexible circuit that can be bent.
